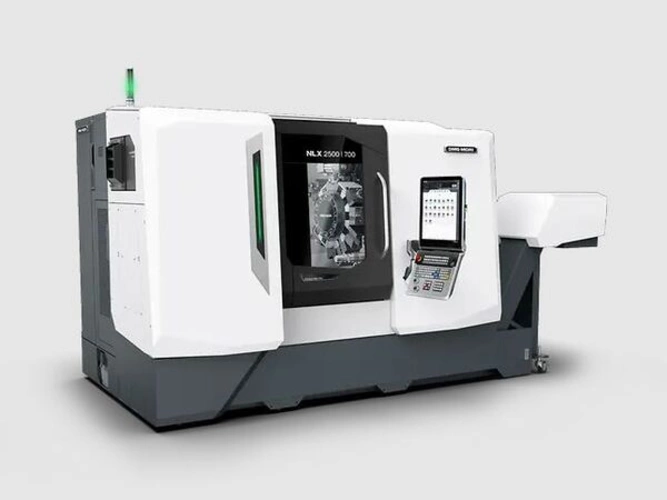

DMG MORI NLX 2500 2nd gen.

Completely revised version, main spindle Speed max. \\[rpm\\] between 3000 and 7000

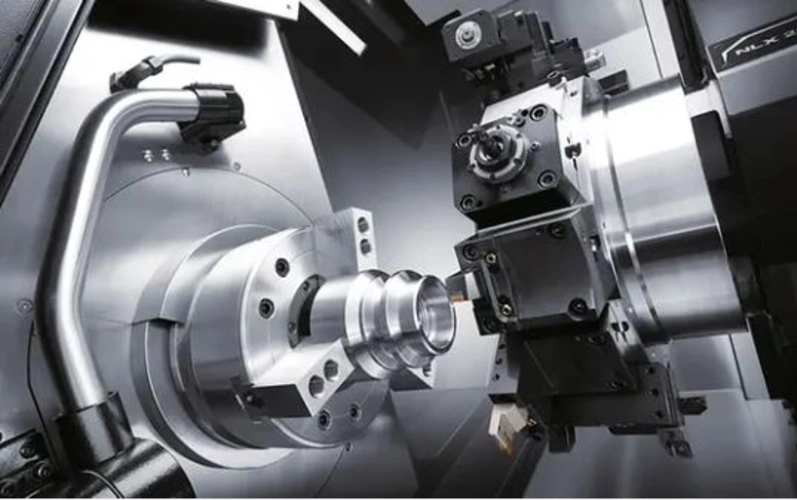

Turret available in three versions

10, 12-station turret + BMT60/108
High speed
Max. Speed: 12,000 min-1
Power: 13 / 10 kW
Torque: 86 / 56 Nm

High torque
Max. speed: 6,000 min- Speed: 6,000 min-1
Power: 15 / 15 kW
Torque: 100 / 60 Nm

20-station turret + BMT40/78
High speed
Max. speed: 12,000 min-78
Speed: 12,000 min-1
Power: 13 / 10 kW
Torque: 40 / 40 Nm

12-station turret + VDI40 Direct Drive
High speed
Max. speed: 12,000 min- Speed: 12,000 min-1
Power: 15 / 12 kW
Torque: 47.7 / 33.2 Nm
Repeat accuracy: 6 m / 200 mm

The NLX 2500 has been completely redesigned following feedback from machine users. The 2nd generation now comes with extensive improvements and upgrades. Thanks to outstanding thermal stability and precision, improved chip removal and milling performance and a standardised Y-axis, the machine enables flexible machining of a wide range of workpieces. The newly introduced ERGOline X control panel makes operation even more intuitive and simple - no matter how complex the workpiece. Whether you are a beginner or an experienced operator, the 2nd generation NLX 2500 is extremely user-friendly.

Reinforced structure for maximum machining capacity
A robust structure is crucial to maximise machining capacity. The structure of the 2nd generation NLX 2500 has been carefully optimised using FEM analyses and simulations of static and dynamic rigidity. DMG MORI's technology is now an integral part of the DNA of every element of the highly rigid structure, no matter how small. The flat guideways on the X/Y/Z axes have optimised sliding surfaces that support the outstanding machining performance through improved vibration damping and dynamic rigidity.

• Flat guideways on the X/Y/Z axes and a highly rigid bed for heavy-duty machining
• Wider guideway of the Z-3 axis and greater distance between the guides Improved dynamic rigidity: 1.3 times for the left spindle and 4.0 times for the right spindle (compared to the 1st generation)
• High surface quality when machining difficult-to-cut materials and intermittent machining
• Rapid traverse speed:
  \\> X-axis 30 m/min, Y-axis 15 m/min, Z-axis 30 m/min
  \\> Z3-axis (spindle right) 30 m/min
  \\> Tailstock 7 / 20 m/min (forwards / backwards)
