DMG MORI NZ TRE (long version)
0 EUR
General information
| 12.02.2025 |
| 101278 |
Search criteria
| 250 mm |
| 1290 mm |
| 72 mm |
| 3 Piece |
| 16 Piece |
| 12 Piece |
| ja |
| ja |
| nein |
|
|
| DMG MORI Aktiengesellschaft |
further specifications
|
|
|
|
| 12000 rpm |
| 16.0 kW |
| 24 Nm |
| 250 mm |
| 7385 mm |
| 1990 mm |
| 2511 mm |
Contact us
Report ad
Description

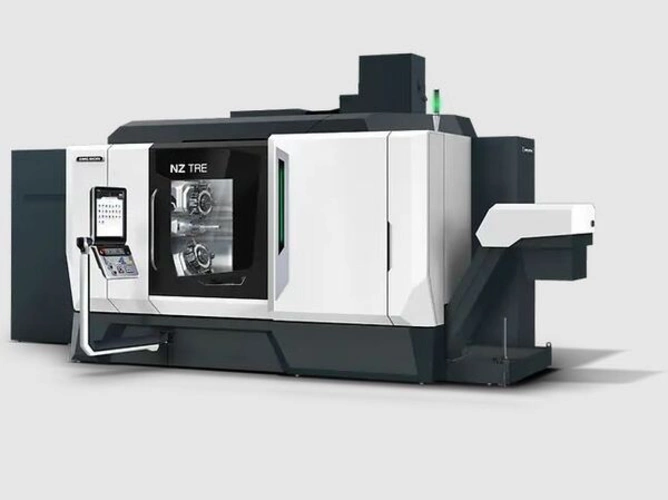

Production lathe, turret on XYZ axis: 3 units possible, TWIN spindle, short and long version
Machine bed in two sizes:
- Short version: Turning lenght up to 740 mm
- Long version: Turning lenght up to 1,290 mm
Excellent chip fall thanks to vertical bed design
Left and right spindle drive motor 23 kW (40％ED) / 20 kW (cont)
Mill spindle drive motor 16 kW (15％ED) / 11 kW (cont.)
B-axis optional on all turrets with swivel angle 110° (see below)
Compact footprint of 17.7 square metres
Production type: One-off production, small series (< 50), Mittelserien (50 - 1000), Großserien (1000 - 100.000), Massenproduktion (> 100,000)
Materials: Aluminium, steel, titanium, plastic / CFRP
Maximum flexibility and productivity

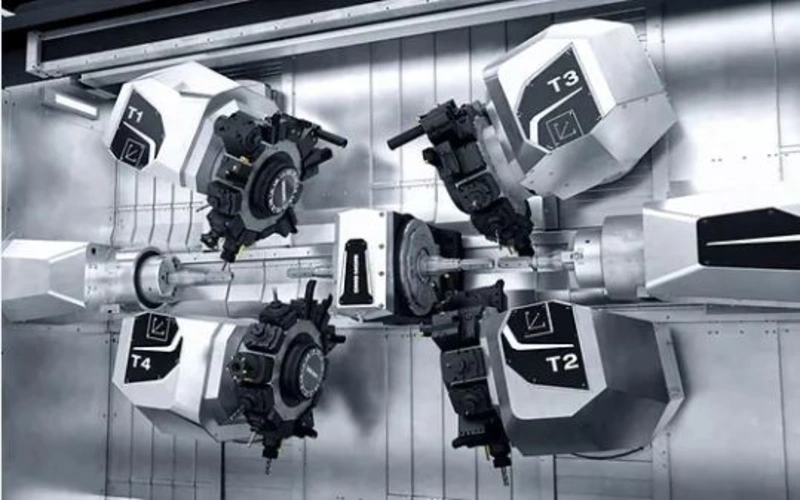

Up to four machining units for turrets:
- 80 mm Y-axis on each position
- -10° to +100° B-axis possible on all four positions, for axes B1 and B4: -100° to +10° / axes B2 and B3: -10° to +100°
Additional TWIN spindle on the Z-axis with φ 65 mm clearance for two independent workspaces:
- Turning function with up to 4,000 rpm and 60 Nm (100 % DC)
- SWISSTYPE function with up to 5,000 rpm rotating guide bush
- Hydraulic steady rest function
